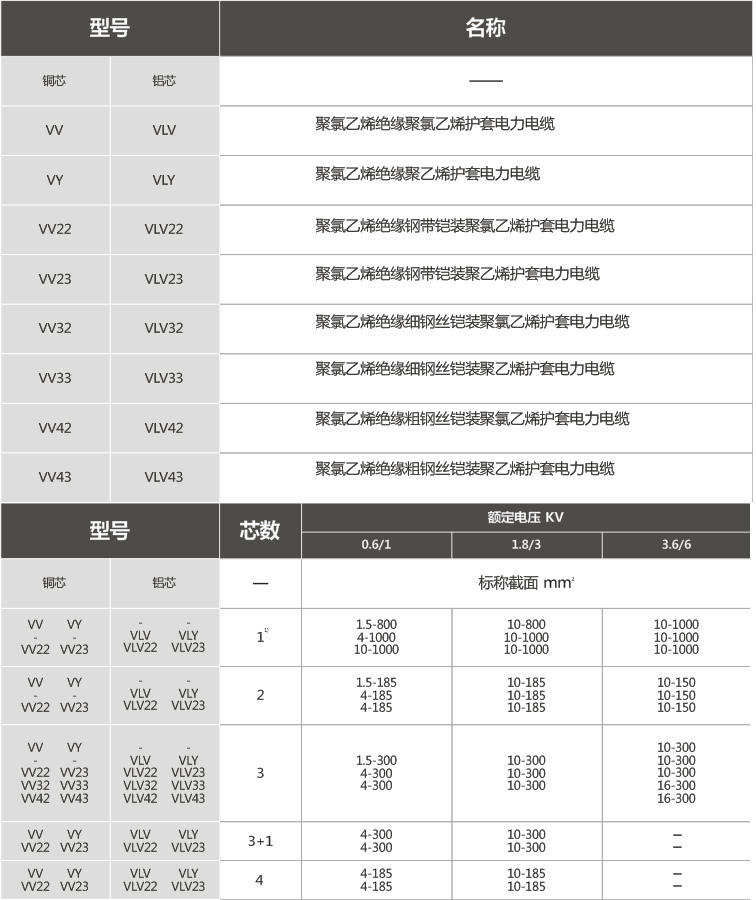

Rated voltage 6kV and below copper core, aluminum core, PVC insulated power cabl

Product introduction

1、 Executive standard: GB / T 12706.1 ~ 2 - 2008



2、 Purpose: suitable for power lines with rated voltage of 3.6/6kv and below.



3、 Service conditions:



1. The maximum temperature of cable conductor is 70 ° C;



2. In case of short circuit (the longest duration is not more than 5 s), the cross section of cable conductor is less than or equal to the maximum temperature of 300 mm conductor



Not more than 160 ° C, and the maximum temperature of the conductor whose cross-section is more than 300 mm shall not exceed 140 ° C;



3. When laying cables, the ambient temperature shall not be lower than 0 ° C, and the minimum bending radius is as follows:



Single core cable - 20d mm



Multicore cable - 15d mm



Where: D -- actual outer diameter of cable, mm
